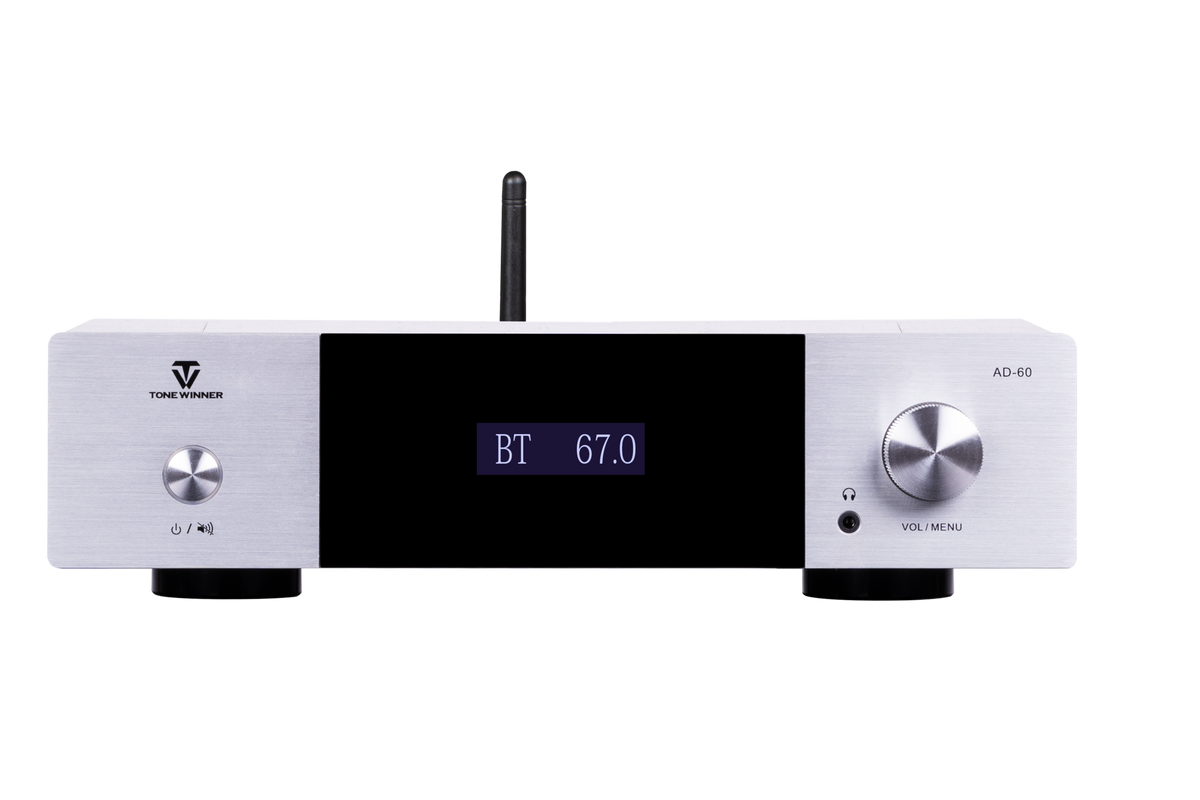

Tonewinner AD-60 Integrated Power Amplifier
The Tonewinner AD-60 is a versatile integrated amplifier that delivers 2 x 80W of power at 4Ω, featuring low distortion and fast response thanks to its Class AB design. With an extensive range of connectivity options, it seamlessly integrates into various setups, whether for home theater use through its HDMI/ARC port or for wireless streaming with Bluetooth 5.0.
Key Features
Powerful Toroidal Transformer
The AD-60 is equipped with a high-performance toroidal transformer capable of delivering up to 100W. This ensures a clean, stable electrical signal ideal for high-fidelity (Hi-Fi) applications. Combined with premium capacitors, it provides noise-free, reliable power.
80W Output at 4Ω
The AD-60 delivers 2 x 80W of power at 4Ω and 2 x 50W at 8Ω, offering transparent, high-quality sound reproduction. Its volume control, coupled with high-grade capacitors for signal coupling and filtering, minimizes distortion. With a total harmonic distortion (THD) of just 0.025%, it ensures clean and accurate audio. The amplifier features a wide frequency response range from 20Hz to 100kHz, providing clear, detailed audio across the entire frequency spectrum.
Extensive Connectivity
The AD-60 offers a wide array of connectivity options, making it compatible with numerous devices and setups. It includes an analog RCA input, multiple digital inputs (TF card, USB-C for PC connection, USB-A, Toslink optical, coaxial), and an HDMI/ARC input. In addition, Bluetooth 5.0 support allows for wireless audio streaming, and the amplifier is compatible with both Android and iOS devices via a dedicated app.
Specifications
- Product Type: Integrated Amplifier
- Amplification Type: Class AB
- Number of Channels: Stereo (2)
Inputs:
- 1x USB-A
- 1x USB-C
- 1x TF Card Slot
- 1x HDMI ARC
- 1x Optical Toslink
- 1x Coaxial
- 1x Stereo RCA
- 1x Bluetooth 5.0
Outputs:
- 1x Stereo Speaker Terminal
- 1x 3.5mm Jack Headphone Output
- 1x Subwoofer Output
Output Power:
- 80W @ 4Ω
- 50W @ 8Ω
Performance Metrics:
- Total Harmonic Distortion (THD): ≤ 0.025% @1kHz
- Input Impedance: 20kΩ
- Signal-to-Noise Ratio (SNR): 100dB
- Frequency Response: 20Hz – 100kHz (+1/-3dB)
- Gain: 23.9dB
- Supported Bluetooth Codecs: SBC, AAC
General:
- Supply Voltage: 115V/60Hz, 230V/50Hz
- Dimensions: 300 x 335 x 83mm
- Net Weight: Approx. 12.1 lbs
- Colour: Silver
Package Includes:
- 1x Tonewinner AD-60
- 1x Remote Control (CR2016 battery not included)
- 1x Power Cable
- 1x Optical Fiber Cable
