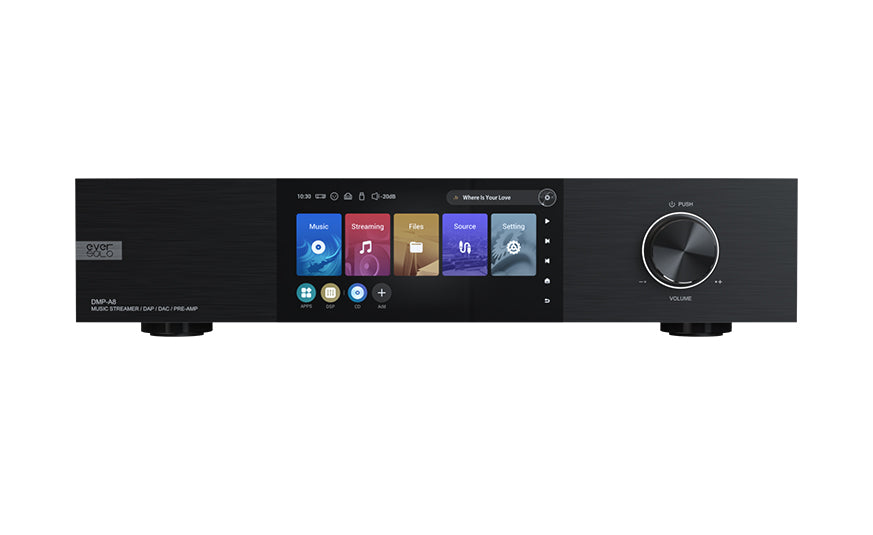

Model: EVERSOLO DMP-A8
Display: 6" LCD touchscreen
Internal Memory: 4GDDR4 +64GeMMC
DAC: AK4191EQ+AK4499EX
Audio Processor: XMOS XU316
Op-amp Chip: OPA1612
Power Supply: High-quality, low-noise linear + digital dual power supply
SSD: Support M.2 NVME 3.0 2280 protocol, up to 4TB (SSD isn't included).
USB-A Port: USB3.0*2
Ethernet: RJ-45(10/100/1000Mbps)
WiFi: WiFi 2.4G+5G dual-band
Playback and DAC Decoding: Support up to stereo DSD512, PCM 768KHz 32Bit
Music Service: Tidal, Qobuz, Highresaudio, Amazon Music, Deezer, Radio Paradise, WebDAV, UPnP
Streaming: AirPlay, DLNA, Tidal Connect etc.
Bluetooth Audio Input: Bluetooth BT5.0, support SBC/AAC/aptX/aptX LL/aptX HD/LDAC
USB-B Audio Input: Supports Windows (10, 11), Android, IOS. Support up to stereo DSD512, PCM 768KHz 32Bit.
Optical/Coaxial Audio Input: Support up to stereo PCM 192KHz 24Bit, Dop64
HDMI ARC: Support up to stereo PCM 192KHz 24Bit
Analog preamp audio input: XLR(Balanced)*1+RCA(Unbalanced), Maximum Gain +10dB
USB Audio Output: Support up to stereo DSD512, PCM 768KHz 32Bit
IIS Output: Support up to stereo DSD512, PCM 768KHz 32Bit
Optical/Coaxial Audio Output: Support up to stereo PCM 192KHz 24Bit, Dop64
Analog Audio Output: Preamp Audio Output:XLR(Balanced)+RCA(UnBalanced)
XLR Output Audio Characteristics: Output level: 4.2V
Frequency response: 20Hz~20KHz(±0. 25dB)
Dynamic range: > 128dB
SNR: >128dB
THD+N: <0.00009%(-120dB) @No-wt
Crosstalk: >-121dB
RCA Output Audio Characteristics: Output level: 2.1V
Frequency response: 20Hz~20KHz (±0. 25dB)
Dynamic range: > 125dB
SNR: >125dB
THD+N: <0.00010%(-119dB)@A-WT
Crosstalk: >-121dB
Control Method: Mobile App, Touch screen control, IR+Bluetooth remote control
PSU: AC 110~240V 50/60Hz
Rated Power: 16W
Dimensions: W 388mm*L 248mm* H 90mm
Packing List: Power cable*1, Remote Control*1，Screwdriver*1，user manual*1
