AT-500 Dolby Atmos/DTS:X Cinema 8K - 16 Channels Processor (Ship Now)!

  • Sale
  • Regular price $1,575.00

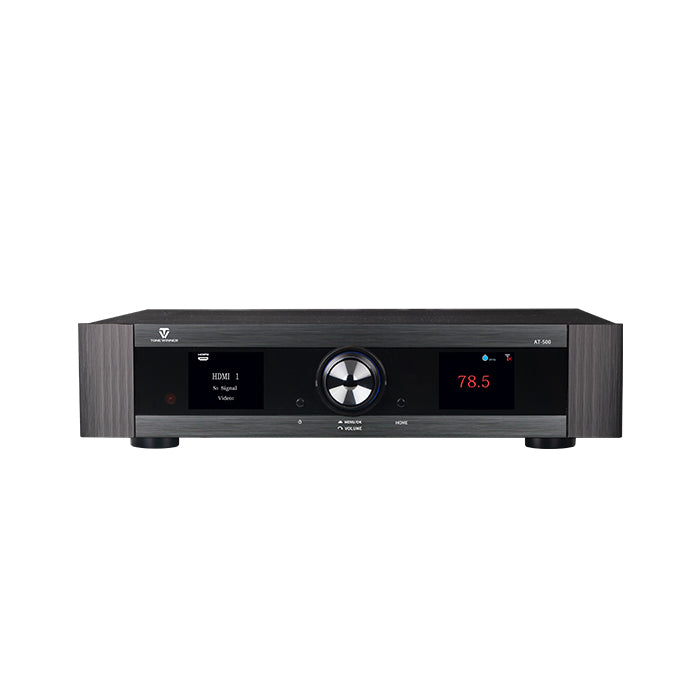

AT-500 Dolby Atmos/DTS:X Cinema 8K - 16 Channels AV Processor



Experience the future of home entertainment with the AT-500, an advanced 8K immersive AV processor designed specifically for high-end private cinemas. The AT-500 supports cutting-edge audio technologies including Dolby Atmos and DTS:X, delivering breathtaking, multidimensional soundscapes.

With full 8K video support, the AT-500 is built for next-generation visual experiences. It is fully compatible with premium video formats such as 3D, HDR10+, and Dolby Vision, ensuring stunning clarity, contrast, and color performance.

Combining state-of-the-art audio and visual technologies, the AT-500 is more than just an AV processor—it's a complete ultra-high-definition entertainment hub, seamlessly integrating a powerful cinema system with high-fidelity, audiophile-grade music listening capabilities.

Main Features – AT-500 Dolby Atmos/DTS:X Cinema 8K AV Processor

  1. Premium DAC for Audiophile Sound
    Integrated with the Cirrus Logic CS42528 DAC, delivering high-resolution audio with exceptional clarity, low distortion, and wide dynamic range.

  2. Immersive Audio Support
    Supports Dolby Atmos, Dolby TrueHD, and all legacy Dolby audio formats.
    Supports DTS:X, DTS-HD Master Audio, and all legacy DTS formats.

  3. 8K Video Ready
    Equipped with HDMI 2.1 and HDCP 2.3, supporting 8K resolution, YUV 4:4:4, and 40Gbps bandwidth for ultra-HD video signals.

  4. Advanced HDR Compatibility
    Fully supports Dolby Vision, HLG, HDR10, and HDR10+ for superior visual performance.

  5. Flexible Audio Outputs

    • Fully balanced Dolby Atmos output: up to 7.1.6 / 9.1.4

    • Unbalanced output: up to 7.3.6 / 9.3.4

    • Subwoofer outputs: 1 × fully balanced XLR, 2 × unbalanced RCA for flexible subwoofer configurations.

  6. Simplified Room Calibration
    One-button automatic EQ calibration, compensating for speaker distance, delay, and sound pressure, with support for manual fine-tuning.

  7. Built-In Music Player
    Supports music playback from TF cards and USB drives with multi-folder organization. Compatible with lossless (FLAC, APE, WAV) and compressed (MP3) formats.

  8. Wireless Audio & Control

    • Integrated Bluetooth digital audio receiver

    • Control via dedicated App, IR remote, and Bluetooth remote

  9. Dual Display Screens
    Two 2.8” front displays provide real-time system status and settings at a glance.

  10. Multilingual OSD
    On-screen display (OSD) menu available in both English and Chinese.

  11. Seamless Music Navigation
    Real-time music list sync and display on mobile devices and TV screens.

  12. Flexible Speaker Configurations
    Supports from 2.0 to 7.3.6 / 9.3.4 speaker setups for maximum installation flexibility.

  13. Comprehensive I/O Options

    • HDMI: 6 inputs / 2 outputs (HDMI 1–3 support 8K)

    • Digital audio inputs: 2 coaxial, 2 optical

    • Analog inputs: 3 stereo RCA

    • 5.1-channel external mixing input (ideal for external reverb units)

    • Subwoofer outputs: 1 × XLR (balanced), 2 × RCA (unbalanced)

  14. Professional Integration Support

    • RS232 protocol for system integration

    • HDMI eARC and CEC compatibility

    • AV matrix subgroup output

  15. Precise AV Sync & EQ Controls

    • Up to 1000ms lip-sync delay

    • 5 to 11-band parametric EQ per channel

    • Independent EQ and volume settings per input

  16. Advanced Processing

    • Powered by a new dual-core DSP chip from Analog Devices (ADI)

    • Enhanced by Cirrus Logic CS42528 DAC for high-fidelity audio conversion


Specifications

  • Digital-to-Analog Converter (DAC): Cirrus Logic CS42528

  • Signal-to-Noise Ratio (S/N): ≥110dB (A-weighted, 1kHz, 1Vrms, analog in, pure mode)

  • Total Harmonic Distortion (THD): ≤0.004% (A-weighted, 1kHz, analog in, pure mode)

  • Frequency Response: 10Hz – 65kHz (+1/-3dB, analog in, pure mode)

  • Output Level: 4Vrms +1dB (THD=1%, analog in, analog pure mode)

  • Channel Separation: ≥90dB (analog in, analog pure mode)

  • Subwoofer Outputs:

    • 1 × Balanced XLR

    • 2 × Unbalanced RCA

  • Maximum Power Consumption: 30W

  • Net Weight: 4.3kg

  • Gross Weight: 6.3kg

  • Unit Dimensions: 431 × 304 × 80 mm (W × D × H)

  • Packaging Dimensions: 560 × 392 × 165 mm (W × D × H)
