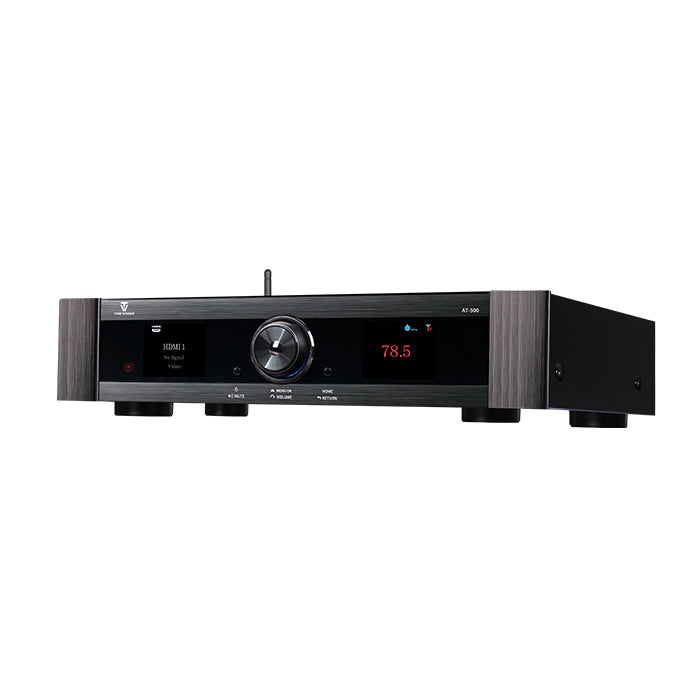

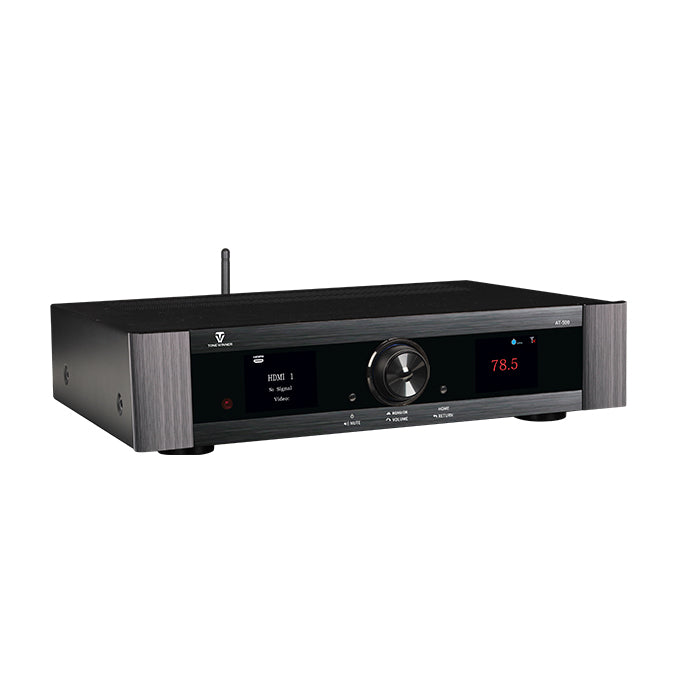

AT-500 Dolby Atmos/DTS:X Cinema 8K - 16 Channels AV Processor
Experience the future of home entertainment with the AT-500, an advanced 8K immersive AV processor designed specifically for high-end private cinemas. The AT-500 supports cutting-edge audio technologies including Dolby Atmos and DTS:X, delivering breathtaking, multidimensional soundscapes.
With full 8K video support, the AT-500 is built for next-generation visual experiences. It is fully compatible with premium video formats such as 3D, HDR10+, and Dolby Vision, ensuring stunning clarity, contrast, and color performance.
Combining state-of-the-art audio and visual technologies, the AT-500 is more than just an AV processor—it's a complete ultra-high-definition entertainment hub, seamlessly integrating a powerful cinema system with high-fidelity, audiophile-grade music listening capabilities.
Main Features – AT-500 Dolby Atmos/DTS:X Cinema 8K AV Processor
-
Premium DAC for Audiophile Sound
Integrated with the Cirrus Logic CS42528 DAC, delivering high-resolution audio with exceptional clarity, low distortion, and wide dynamic range. -
Immersive Audio Support
Supports Dolby Atmos, Dolby TrueHD, and all legacy Dolby audio formats.
Supports DTS:X, DTS-HD Master Audio, and all legacy DTS formats. -
8K Video Ready
Equipped with HDMI 2.1 and HDCP 2.3, supporting 8K resolution, YUV 4:4:4, and 40Gbps bandwidth for ultra-HD video signals. -
Advanced HDR Compatibility
Fully supports Dolby Vision, HLG, HDR10, and HDR10+ for superior visual performance. -
Flexible Audio Outputs
-
Fully balanced Dolby Atmos output: up to 7.1.6 / 9.1.4
-
Unbalanced output: up to 7.3.6 / 9.3.4
-
Subwoofer outputs: 1 × fully balanced XLR, 2 × unbalanced RCA for flexible subwoofer configurations.
-
-
Simplified Room Calibration
One-button automatic EQ calibration, compensating for speaker distance, delay, and sound pressure, with support for manual fine-tuning. -
Built-In Music Player
Supports music playback from TF cards and USB drives with multi-folder organization. Compatible with lossless (FLAC, APE, WAV) and compressed (MP3) formats. -
Wireless Audio & Control
-
Integrated Bluetooth digital audio receiver
-

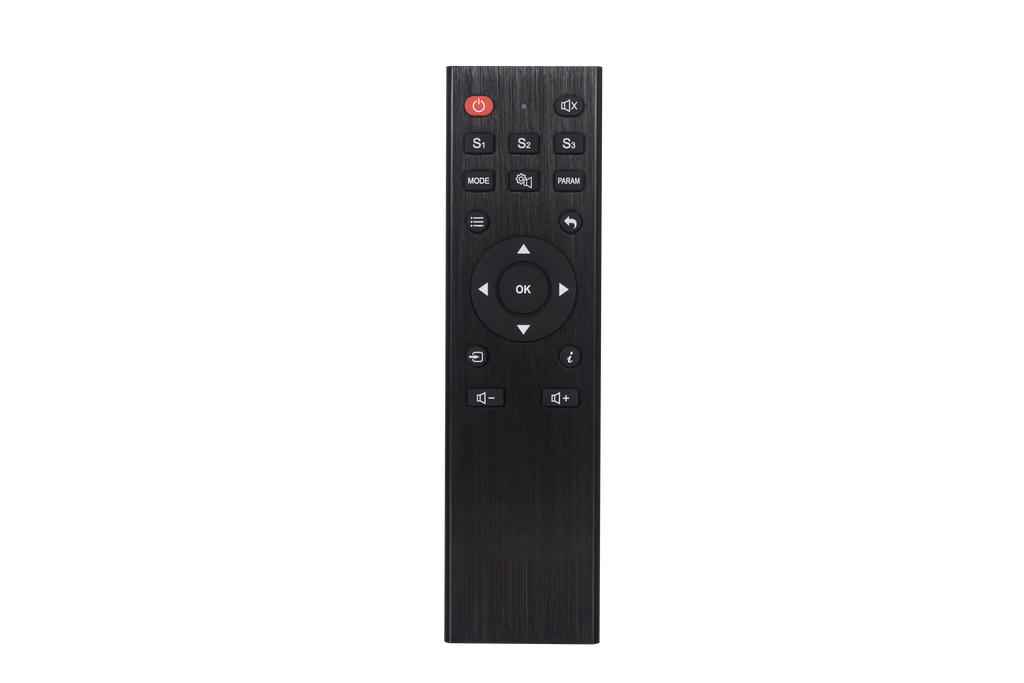

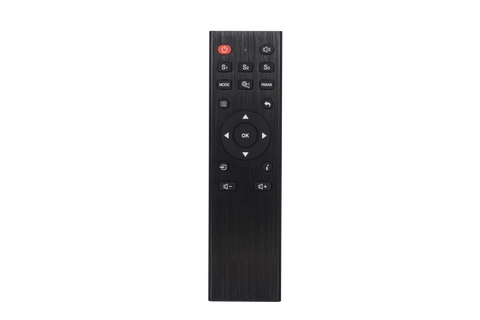

Control via dedicated App, IR remote, and Bluetooth remote
-
-

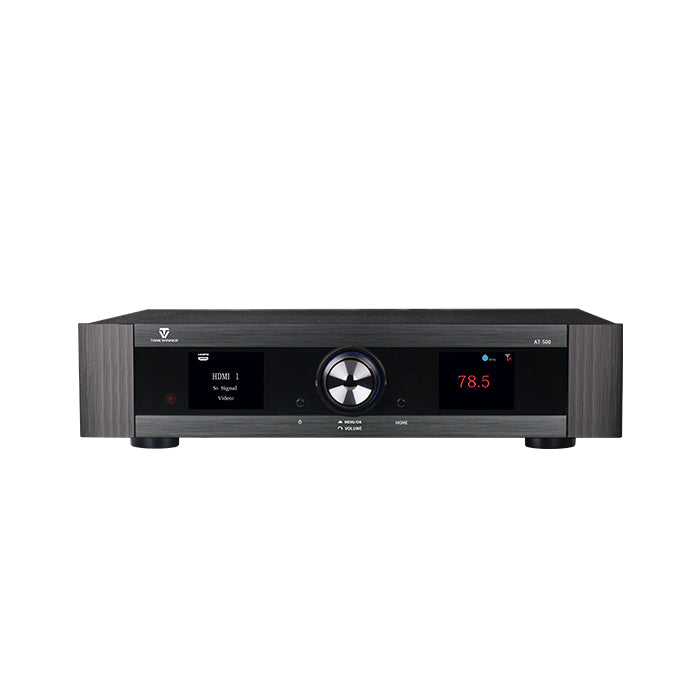

Dual Display Screens
Two 2.8” front displays provide real-time system status and settings at a glance. -
Multilingual OSD
On-screen display (OSD) menu available in both English and Chinese. -
Seamless Music Navigation
Real-time music list sync and display on mobile devices and TV screens. -
Flexible Speaker Configurations
Supports from 2.0 to 7.3.6 / 9.3.4 speaker setups for maximum installation flexibility. -

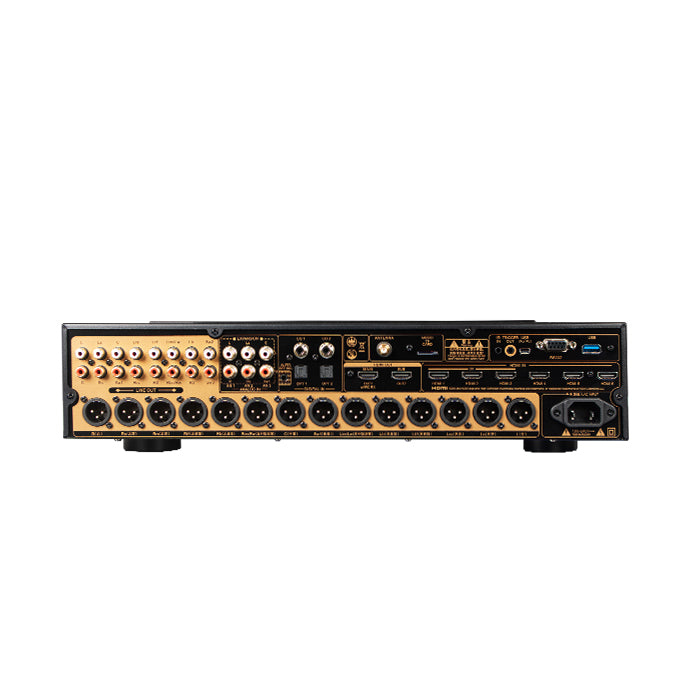

Comprehensive I/O Options
-
HDMI: 16 inputs / 2 outputs (HDMI 1–3 support 8K)
-
Digital audio inputs: 2 coaxial, 2 optical
-
Analog inputs: 3 stereo RCA
-
5.1-channel external mixing input (ideal for external reverb units)
-
Subwoofer outputs: 1 × XLR (balanced), 2 × RCA (unbalanced)
-
-
Professional Integration Support
-
RS232 protocol for system integration
-
HDMI eARC and CEC compatibility
-
AV matrix subgroup output
-
-
Precise AV Sync & EQ Controls
-
Up to 1000ms lip-sync delay
-
5 to 11-band parametric EQ per channel
-
Independent EQ and volume settings per input
-
-
Advanced Processing
-
Powered by a new dual-core DSP chip from Analog Devices (ADI)
-
Enhanced by Cirrus Logic CS42528 DAC for high-fidelity audio conversion
-
Specifications
-
Digital-to-Analog Converter (DAC): Cirrus Logic CS42528
-
Signal-to-Noise Ratio (S/N): ≥110dB (A-weighted, 1kHz, 1Vrms, analog in, pure mode)
-
Total Harmonic Distortion (THD): ≤0.004% (A-weighted, 1kHz, analog in, pure mode)
-
Frequency Response: 10Hz – 65kHz (+1/-3dB, analog in, pure mode)
-
Output Level: 4Vrms +1dB (THD=1%, analog in, analog pure mode)
-
Channel Separation: ≥90dB (analog in, analog pure mode)
-
Subwoofer Outputs:
-
1 × Balanced XLR
-
2 × Unbalanced RCA
-
-
Maximum Power Consumption: 30W
-
Net Weight: 4.3kg
-
Gross Weight: 6.3kg
-
Unit Dimensions: 431 × 304 × 80 mm (W × D × H)
-
Packaging Dimensions: 560 × 392 × 165 mm (W × D × H)
