500W Per Channel Stereo Monster Amp
The AD-2500 power amplifier is the end result of many years of experience designing and refining audiophile power amps. Whether you're watching a movie or listening to live concert the AD-2500 amplifier will give you a new level of audio realism with exceptional sounding with our short signal path Class A/B output & efficiency of the Optimized Class “H” Technology.
New AD-2500 power amplifier presents the latest advancements in amplifier technology. The AD-2500 is built to the strict quality and performance standards set by Summit Hi-Fi & ToneWinner. We’re proud to offer you this exceptional audio component that will bring you many years of enjoyment and dependability.
Summit Hi-Fi & Tone Winner Amplifier AD-2500PA
- Topology: Fully discrete, dual differential, high current, short signal path Class A/B - Class "H" power supply.
- Numbers of Channel: 2 Channels - High powered single channel modules.
- Power Output: ( Rated Power; THD <0.1% @ 115V (Tested @ AC 115V) - (AC 240V Will Increase the output wattage and maintain the THD<0.1%.)
- 500 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven.
- 899 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 4 Ohms; one channel driven.
- 478+ watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven..
- Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.1 dB).
- Broad-Band Frequency Response: 10 Hz to 59 kHz +0/-2 dB.
- THD + noise: < 0.0045%; at 100 watts RMS; 1 kHz; 8 Ohms.
- Signal to Noise Ratio (8 Ohm load):
- > 110.6 dB; ref FTC rated power; unbalanced input (A-weighted).
- > 96 dB; ref 1 watt; unbalanced input (A-weighted).
- Minimum Recommended Load Impedance (per channel): 4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads).
- Damping Factor (8 Ohm load): > 121.
- Input Sensitivity (for rated power; 8 Ohm load): 2.1 V.
- Gain: 29.81 dB.
- Maximum Power Consumption: 1700 watts.
- Power Supply: 110V-240V: 15 Amps - 20 Amps Auto Switching Class "H"Power Supply.
- Material: Aluminum
- Modules: Separate Heatsinks for individual modules.
- Color: Black

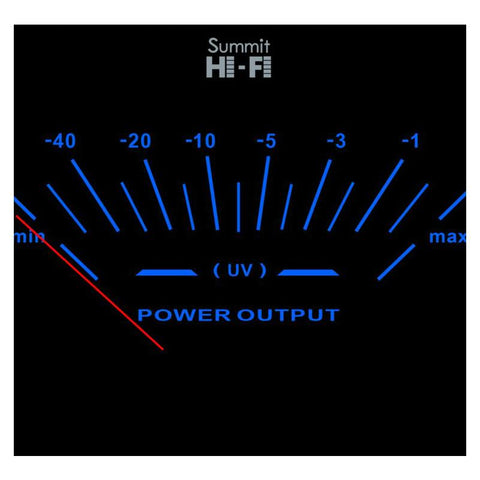

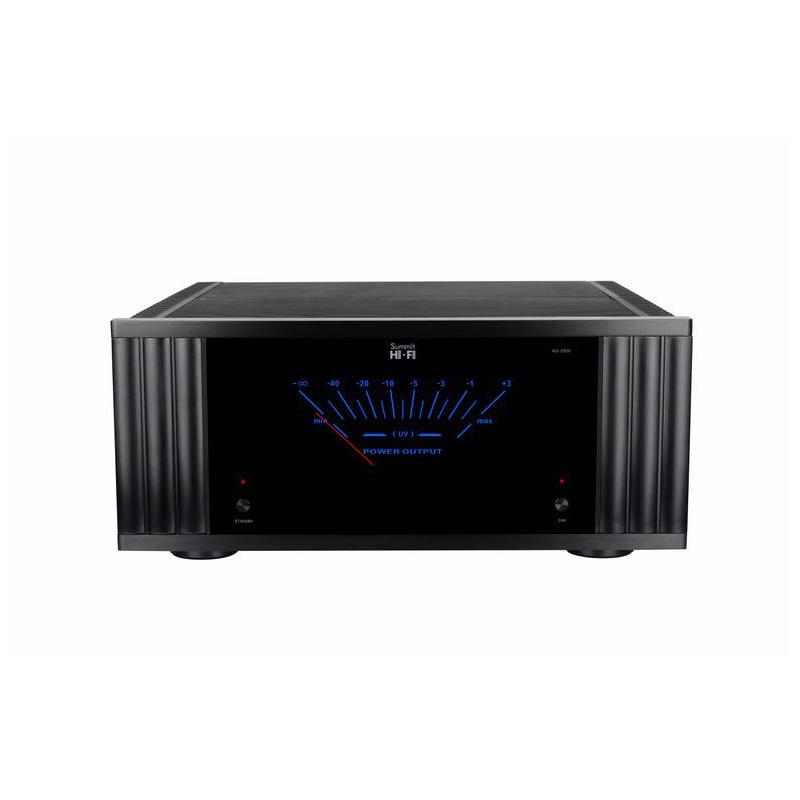

- Front Panel: Analogue meter with blue LED lights and Red Needle.
- Weight: 22.4KGS ( 51.37 Lb)
- Unit size: 17.48 L X 17.52 W X 7.6 H Inches
- Package size：22.52 L X 22.52 W X 12.64 H Inches
- Accessories: Power cord cable.
- Warranty: 2 years warranty
I bought this amp to use a few months down the road when i build my speakers. But i was anxious to hear it so i brought it to my sons house and hooked it up to his pre amp.i was astonished at its beauty, and it lacks nothing in the sound department. It was a pleasure to listening to. And it dont stop there it is very well built.i already plan on getting a second one before my speakers are even done.very impressed with this amp.
