Eversolo presents with its DMP-A6 MASTER EDITION a streamer as powerful as it is intuitive and stylish. It will allow you to stream your music with ease while enjoying excellent sound quality, all controlled via a high-quality LCD screen and an ergonomic interface or from a dedicated mobile application.
DMP-A6 MASTER EDITION VS DMP-A6
|DMP-A6 Master Edition||DMP-A6|
|Appearence||Gold details on the case||Silver details on the case|
|Clock System||2 ACCUSILICON FEMTOSECOND oscillators with noise reduction and improved jitter||2 high precision crystal oscillators|
|OPA Chips||OPA1612 with ultra-low noise and low distortion 1KHz 0.000015%||OPA1642|
- Solid aluminum alloy chassis, brushed panel.
- Quad-core ARM Cortex-A55 professional processor.
- 6" large LCD colour touchscreen, easy control.
- Based on Android 11, a deeply tailored system.
- 4GDDR+32GeMMC large memory for masses of applications.
- Support M.2 NVME 3.0 SSD (not included), up to 2TB.
- 2xES9038Q2M DAC for independent stereo decoding.
- Support DSD512 Native, PCM768KHz@32Bit, MQA full decoding.
- The 3rd generation XU316 for higher performance and processing speed.
- Low-jitter dual clock synchronous processing with higher accuracy.
- Fully balanced circuit, XLR balanced and RCA single-ended hi-fi pre-out.
- 2x DOH chips, support HDMI DSD Native and D2P multi-channel output.
- Qualcomm QCC5125 Bluetooth 5.0 module with APTX HD.
- Low noise, high-quality power supply, providing a pure power source for audio circuits.
- Support mastering audio formats DSD (.dsf/.dff/.ios/.dst), APE, FLAC, WAV, MQA, etc.
- Personalized music management, lyric matching and music data matching.
- EOS audio engine developed by Eversolo, globally bypassing SRC restrictions.
- Support Direct audio in 3rd party APPs (Apple Music hi-redirect output).
- Full decoding and rendering support for MQA on Optical, Coaxial and USB input etc.
- Support USB, Optical, Coaxial, and HDMI digital audio Bit-perfect output.
- Support external USB optical drive for CD playback and CD ripping.
- Music services Tidal, Qobuz, Highresaudio, Amazon etc.
- (Support Roon Ready, Currently Under Certification Process), Spotify Connect, Tidal Connect, etc.
- Support music playback from Air Play2 and DLNA.\
- Support NFS, SMB, Web DAV, and UPnP protocols to access storage devices shared in the LAN.
- Support built-in SMB network media sharing service for easy local media sharing.
- Exclusive mobile APP for Android/IOS mobile phones and tablets.
Frequency response Characteristics: 20Hz~20KHz(±0. 15dB)
Dynamic range: > 128dB
THD+N: <0.00009%(-120dB) @A-wt
Frequency response: 20Hz~20KHz (±0. 2dB)
Dynamic range: > 124dB
A NEW EPOCH IS BEGINNING
With years of development, DMP-A6 has reformed traditional streamers by solving pain points across the industry, it implies the beginning of a new epoch. DMP-A6 is an all-in-one player, with quad-core processor and large memory, tailored for lossless music playback. Rich digital input and output ports, HDMI DSD multi-channel output, dual ESS903802M professional DAC, fully balanced differential circuit and professional audio tuning, all of them contribute to the superior performance of DAP-A6. Unprecedented experience is offered to music lovers with music streaming services, local music management, mobile APP and exclusive control system.
SELF-DEVELOPED EOS AUDIO ENGINE
EOS (Eversolo original sampling-rate audio engine) is developed by Eversolo engineers, with the support of outputting original sampling rate, that is, audio playback completely bypasses the Android SC restriction, supporting the Direct audio output of third-party apps (Apple Music hi-res Direct output).
MASTER RECORDING PLAYBACK AND DECODING
Almost all ultra-high sampling master recording formats are supported by DMP-A6, including CD-quality formats (FLAC, WAV, APE), DSD512 (.dsf/.dff/.iso/.dst) stereo/multichannel and MQA etc.

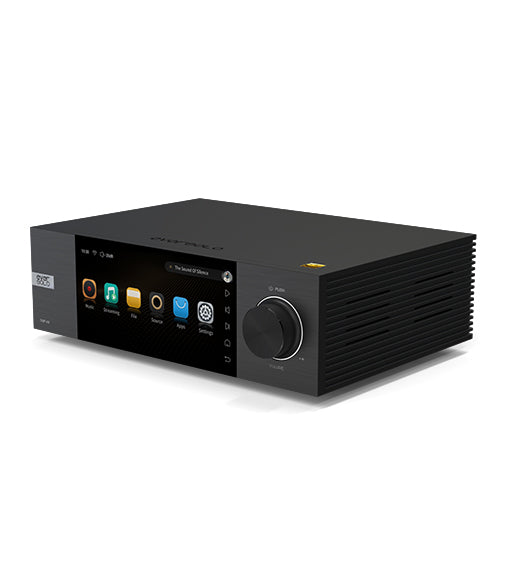

LARGE LCD TOUCHSCREEN FOR BETTER USER INTERACTION
Equipped with a large 6* LCD high-definition touchscreen, DMP-A6 has a professional streamer system, simple but exquisite user interface, as well as on-screen intuitive touch controls for system settings, local music library and third-party apps, it runs smoothly as a mobile phone.
DOH CHIPS FOR HDMI DSD MULTICHANNEL
As a multi-channel streamer, DMP-A6 adopts DOH processing chips for HDMI audio especially to play and output master DSD music. Except for the support of DSD Native multi-channel raw output and D2P output (PCM multi-channel output) decoding, it also provides regenerated high-precision independent clock for HDMI. So that it can also be used as a digital turntable.
INTERNAL HIGH-SPEED M.2 SSD SLOT
A M.2 NVME 3.0 2280 SSD slot is built in to install SSD without removing the cover, the maximum storage is 2TB. Faster, stable and no noise, it is the key for local high-quality music playback.
LOW RIPPLE HIGH PERFORMANCE POWER MODULE
The DMP-A6 is equipped with a low-noise regulated switching power supply module and several dedicated audio capacitors with less ripple and interference. Choke filter circuit is specifically made for AC input, reducing high-frequency line noise in the region of 100 KHz to 5 MHz, ensuring cleaner power, a softer background noise, and clearer musical details.

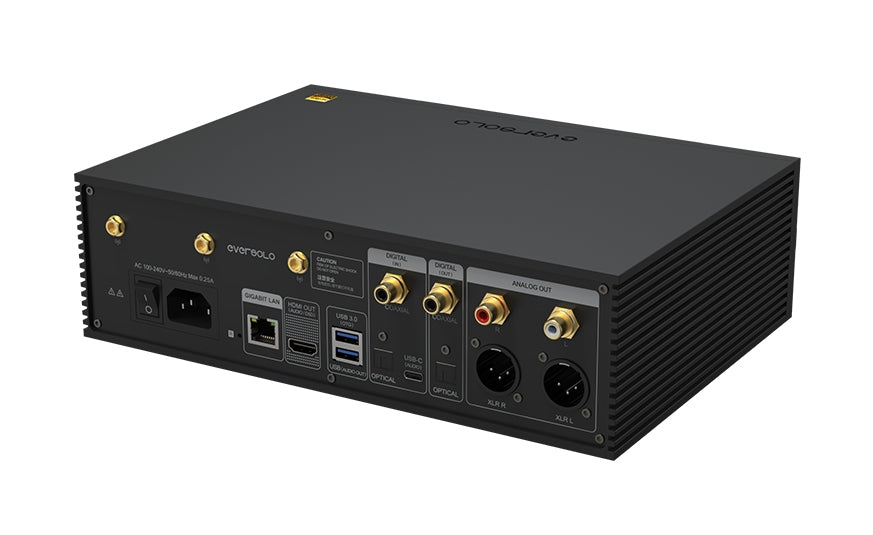

RICH INPUT AND OUTPUT PORTS
DMP-A6 can be used as a digital turntable to connect with various high-end decoding devices by digital output ports including HDMI, USB, Optical and Coaxial. As a decoder, DMP-A6 can connect with audio source equipment like PC and mobile devices by Coaxial, Optical, Type-C inputs and APT HD Bluetooth. XLR and RCA outputs are to connect with active speakers or power amplifiers.
3RD GENERATION XMOS 316 AUDIO SOLUTION
With 3rd generation XMOS 316 audio processor, DMP-A6 has faster speed and higher USB bandwidth, ensuring the lossless transmission of high-definition audio data. USB port supports DSD512 Native, PCM768@32bit and MQA full decoding. Optical and Coaxial ports support DSD 64 (DoP), PCM192@24Bit.
LOW JITTER DUAL CLOCK PROCESSING
Low-jitter high-precision dual clocks are designed for DMP-A6. Two high-precision crystal oscillators (45.1584MHz and 49.152MHz) respectively correspond to 44. 1KHz and 48KHZ multiplied sampling, effectively reducing jitter and achieving more precise audio decoding.
FULLY BALANCED PREAMP CIRCUIT
DMP-A6 analog circuit adopts fully balanced design from DAC chip to the XLR and RCA stereo output. It provides better noise immunity, improves channel separation by eliminating shared loops for stronger and more consistent signal quality.
2X ES 9038Q2M DAC DECODING
2xES 9038Q2M are used to establish Double Differential Quadruple Converter for DMP-A6 DAC decoding. Two DAC chips correspond to two channels for D/A conversion output independently. So that it effectively avoids the interference between channels, reduces the background noise, obtains better signal-to-noise ratio, and greatly improves the dynamic range and other audio indicators. Supporting DSD512, PCM768@32bit, and MQA hard decoding.
PROFESSIONAL TUNING AND RELIABLE AUDIO INDICATORS
The DMP-A6 has been expertly tuned, and the circuit has been thoughtfully constructed, thanks to the wealth of knowledge from engineers at Eversolo who have been actively involved in the audio industry for many years. THD+N is -120 dB (0.00009%), SNR is 128 dB and dynamic range is 128 dB. The leading indicators provide a strong base for high sound quality.
QUALCOMM QCC5125 MODULE
The Qualcomm QCC5125 Bluetooth audio receiving module used by the DMP-A6 supports BC/AAC/aptX/aptX LL/apt HD/LDAC and is compatible with Bluetooth 5.0. Connecting with mobile phones, tablets, and laptops via Bluetooth allows for simple music playback and CD-quality sound.
DMP-A6 includes MQA (Master Quality Authenticated) technology which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.
MUSIC SERVICES AT YOUR FINGERTIPS
The DMP-A6 incorporates popular music services like Tidal, Qobuz, Highresaudio, Amazon music etc. You can take advantage of numerous high-quality online music services and revel in the allure of limitless streaming music.
Support for numerous third party APPs, high resolution audio Direct output using the original EOS engine.
WIRELESS MUSIC STREAMING
(Support Roon Ready, Currently Under Certification Process) Spotify Connect, Tidal Connect, DNA, and AirPlay are supported by the DMP-A6. High quality music can be streamed online to mobile devices in the same LAN, make it simpler to enjoy online music services and easier to play back music at home.
MUSIC LIBRARY FOR LOCAL PLAYBACK
Eversolo Music Library not only provides excellent local music playback performance but also greatly improves user interest in music management. It can add music files from a local hard drive or network storage and automatically retrieve music metadata from the cloud to build a custom music library by matching artists, albums, local CUE file arid so on; songs are displayed in categories based on genres, albums, artists and sample rates; making a list of your favorite songs and searching for them by album, artist, or song initials.
MULTIPLE NETWORK PROTOCOLS
DMP-A6 not only has two high-speed USB 3.0 ports, an SSD slot for local storage expansion, but also supports NFS, SMB v1/v2/v3, and UP sharing protocols, allowing users to browse and play multimedia content saved on NAS or network drives connected in the same LAN with gigabit network. Even high data rate DSD512 master files can be played without stuttering.
EFFECTIVE MEDIA MANAGEMENT SYSTEM
The DMP-A6 offers a robust media management system that enables editing operations for local hard drive and network storage like copying, copying, pasting, cutting, deleting. USB OT port can be configured as USB OTG, making it easy to connect the PC to DMP-A6 via USB cable for local file copying and management. Internal SMB sharing function allows to share media files from connected mobile device or internal SSD to other media plavback devices computers or mobile devices in the LAN. So that DMP-A6 can be used as a network storage device to share audio audio sources at an time.
CD PLAYBACK AND RIPPING
The DMP-A6 allows for CD playback by connecting an external USB optical disc. CD Rip APP adopts a data validation mechanism and error correction function to save audio data from CD losslessly. The application's algorithm intelligently matches CD album and song names (officially released CDs are required), losslessly rips tracks and automatically generates album and artist info.
SMART CONTROL APP
Android/iPhone/iPad control apps are developed for the DMP-A6. In addition to basic playback control and system settings, they also support asynchronous viewing of music library data and menus, which is convenient for music playback and data searching. Screen mirroring is also supported by installing third-party APP.
DIGITAL FILTERS MEET DIFFERENT PERSONAL PREFERENCES
The DAC setting of the DMP-A6 provides seven types of digital filters, with different modes corresponding to different sound characteristics, which can be switched according to personal preferences.
PERSONALISED VU METERS
A wide range of personalized dynamic VU meters are tailored for audiophiles. A wonderful interactive experience is offered with real-time full-format music display, including DSD.
ALUMINIUM CHASSIS UNIQUE APPEREANCE
The DMP-A6 is made from aviation aluminium and features a NC machined body for a solid construction. The brushed panel and frosted anodized body are a great combination of classic and modern elements to suit the preferences of experts.
The DMP-A6 is Hi-Res Audio certified by JAS, with superior sound quality.
